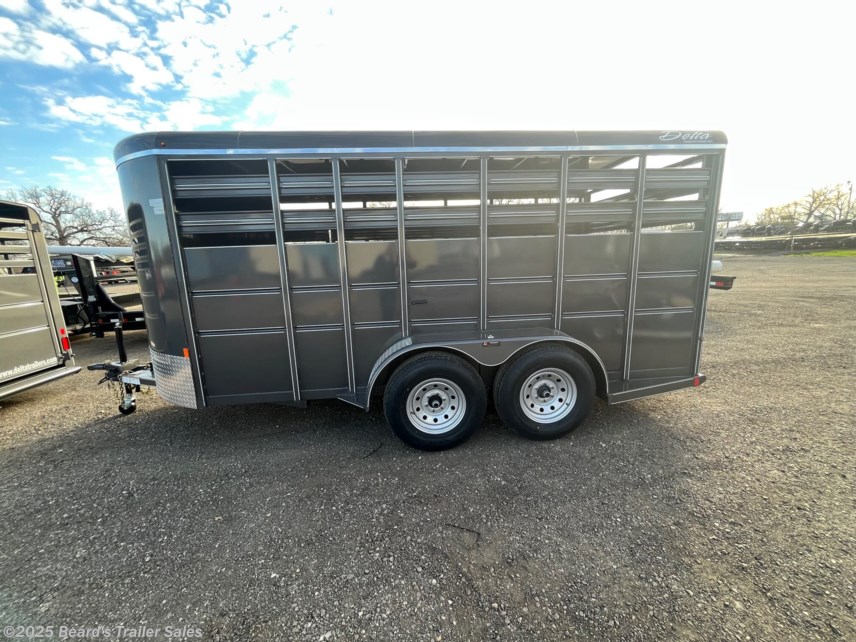

New 2023 Delta 500 Series 6X16

500 COMBO BUMPER HORSE

LENGTH-16'

WIDTH-6'

HEIGHT-6'6"

STALLS-3-HORSE (38" STALL)

DRESSING-TACK COMPARTMENT-32" SHORT WALL X 78" LONG WALL

TIRES-16" RADIAL TIRES

GVWR-7,000#

COUPLER-2" COUPLER

AXLES- TANDEM, 3,500# SPRING

SUSPENSION- DEXTER EYE-TO-EYE SPRINGS

BRAKES-ELECTRIC BRAKES ON ALL AXLES

WHEEL-16"-6 BOLT

SPARE-SPARE CARRIER INCLUDED

FRAME-2X3 ANGLE

TONGUE-3" CHANNEL

CROSSMEMBERS- 2X2 ANGLE ON 16" CENTERS

JACK- TOP WIND WITH WHEEL

FLOOR- 2" PRESSURE TREATED PINE

SIDES- 48" HIGH EMBOSSED, 16 GAUGE

SIDE UPRIGHTS- 1X2 TUBING

SIDE DOOR- SOLID ENTRANCE DOOR

ROOF-18 GAUGE METAL WITH BOWS ON 24" CENTERS

ROOD RADIUS- 6" ROOF RADIUS

NOSE CAP-ROUND

TACK AREA- SWING WALL

DIVIDER-SWING WALL

REAR DOOR-STANDARD FULL SWING WITH 1/2 SLIDER

REAR OPENING-TUBING UPRIGHTS WITH PIN/SPOOL GATE LATCH

FENDERS-STEEL TEARDROP

WINDOW-1- LARGE OVAL

WIRING-14 GAUGE IN CONDUIT WITH JUNCTION BOX

ELECTRIC PLUG- 7-WAY RV STYLE

EXTERIOR LIGHTS- D.O.T. STOP, TAIL, TURN AND CLEARANCE-LED

PRE-PREP- 3-STEP ACID WASHED WITH PHOSPHORUS SOLUTION

PREP-SIDES, FENDERS & ROOF JOINTS

PRIMER- RUST RESISTANT EPOXY PRIMER

PAINT- BAKED-ON HIGH SOLID URETHANE

PINSTRIPES- PAINTED PINSTRIPES

DECK HEIGHT- APPROX. 14"

GRAVEL GUARD- DELUXE ALUMINUM DIAMOND PLATE

REFLECTIVE TAPE- REQUIRED D.O.T. REFLECTIVE TAPING

SAFETY-EMERGENCY BREAKAWAY SWITCH & BATTERY BACKUP

SAFETY CHAINS- 5/16" HEAVY DUTY WITH SAFETY LATCH HOOKS
