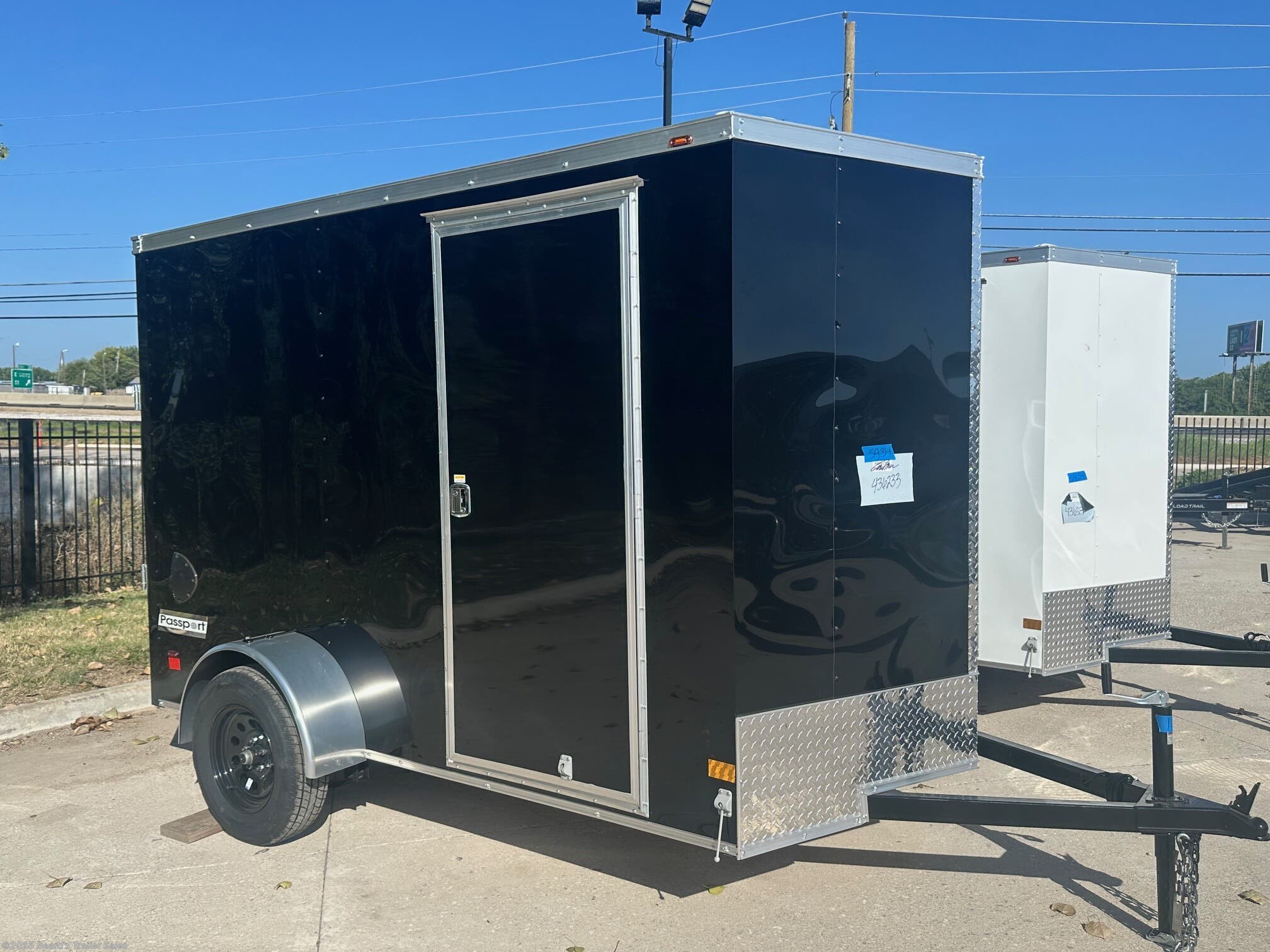

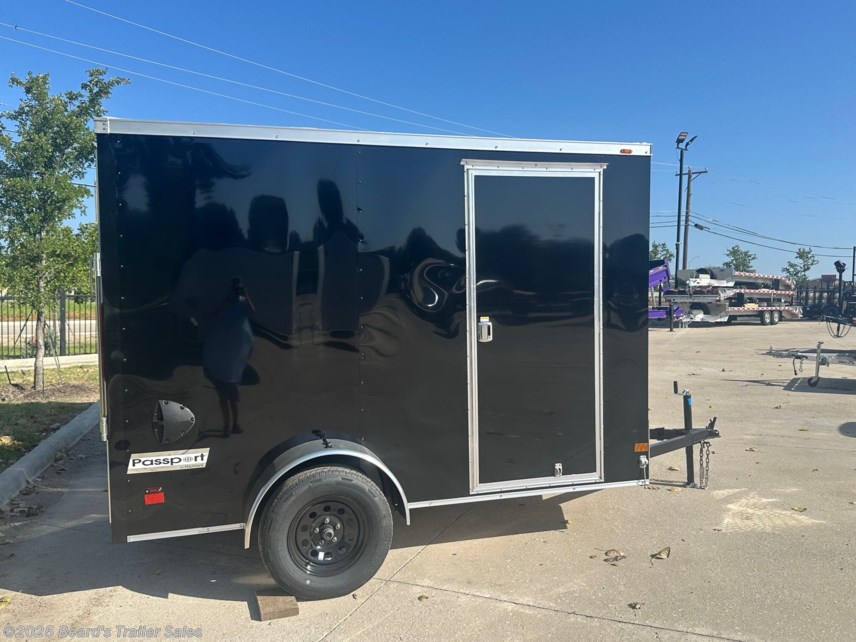

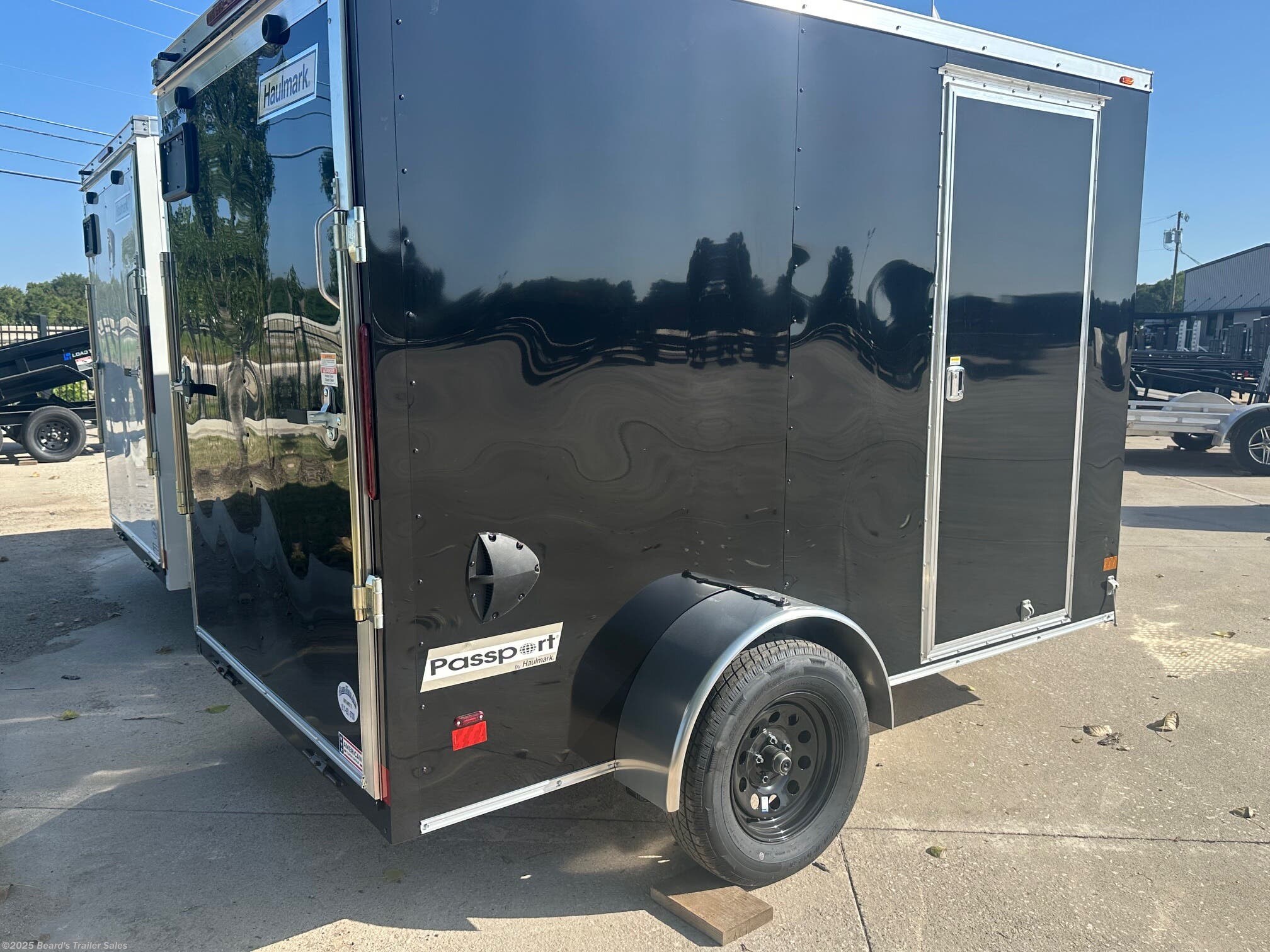

New 2025 Haulmark Passport 6X10

• Model: PP610S2-D (Passport Series)

• Size: 6 ft wide × 10 ft long

• GVWR: 2,990 lbs

• Frame Type: Steel Frame

• Color: BLACK .030 Aluminum Exterior

• Roof: 1-Piece Aluminum, Flat Style

• Exterior: Semi-screwless with color-coated screws

• Tongue: Standard A-Frame with Sand Pad

• Frame Paint: Black

?? Chassis & Structure

• Main Rails: 2" x 3" Tube

• Crossmembers: 16" On Center

• Roof Bows: Tube, 24" On Center

• Vertical Posts: 16" On Center

• Tube Posts: 76-1/2"

• Inside Height: Approx. 6'6"

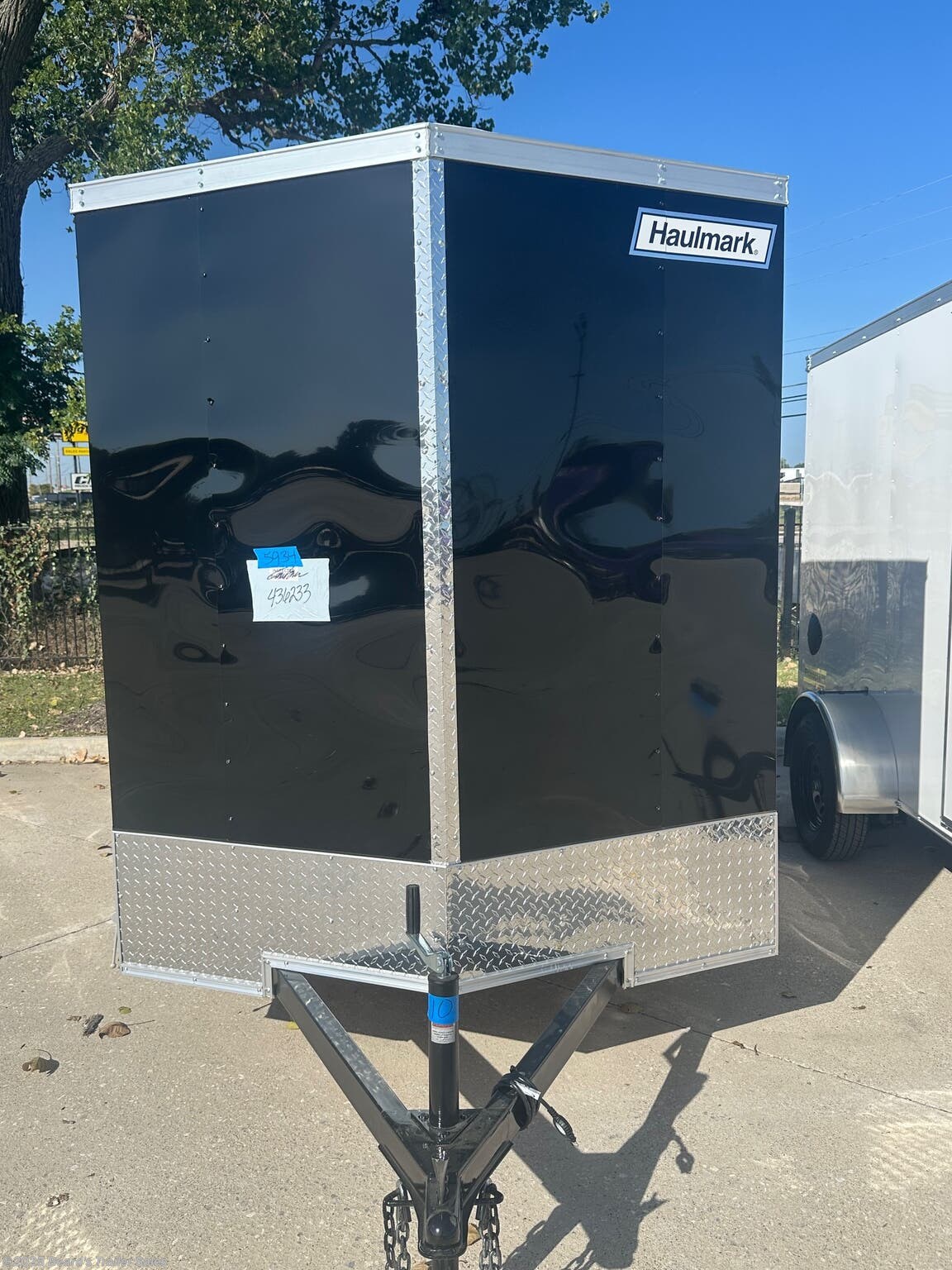

• V-Front Design with V-Nose

?? Axle, Jack & Wheels

• Axle: 3.5K Spring Axle with 4" Drop (No Brakes, EZ Lube Hubs)

• Jack: 2,000 lb Top Wind Tongue Jack

• Coupler: 2" 5,000 lb

• Chains: 1/4" x 27" G3 Safety Chains with Slip Hook

• Wheels: (2) ST205/75R15 Radial Tires on Black Mod Steel Rims

?? Doors & Access

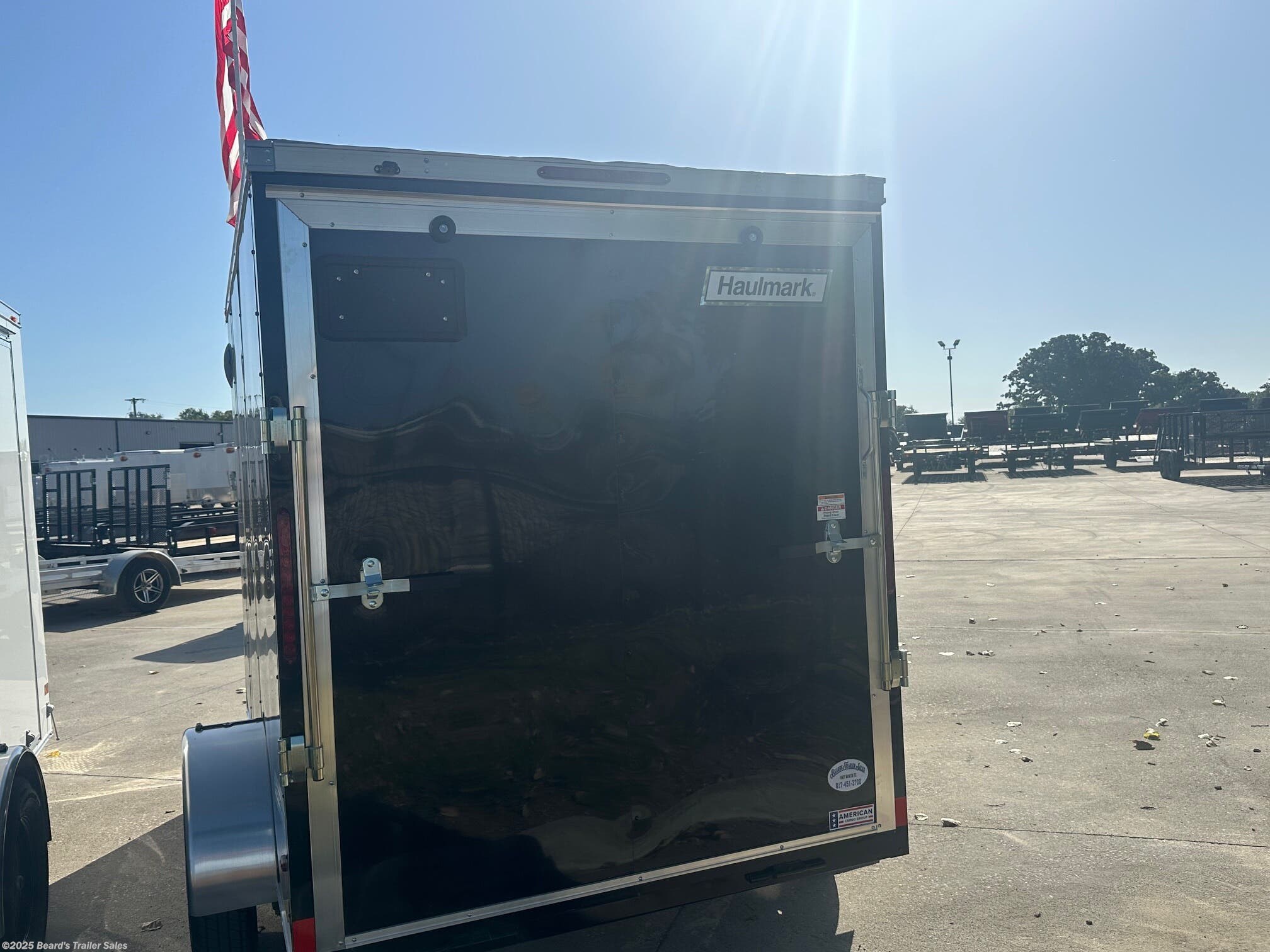

• Rear Door: 2000 lb Rear Ramp Door with Deluxe Trim and 16" Ramp Extension

• Side Door: 32" x 72" Passenger Side Door (RH Hinge)

?? Interior

• Flooring: 3/4" PlexCore Decking

• Walls: 3/8" PlexCore Sidewall Liner

• Tie Downs: (4) 5,000 lb Square D-Rings with Welded Plates

?? Lighting & Electrical

• Interior Light: (1) 12V Dome Light

• Exterior Lights:

  • LED Fender Mount Clearance Lights (Pair)

  • LED Red Lens Clearance Lights (x2)

  • LED Amber Lens Clearance Lights (x2)

  • LED Slim Line Red Lens Tail Lights (Pair)

  • LED Red Lens Rear Clearance ID Bar

• License Plate Light: Separate Light with Bracket

?? Fenders, Stoneguard & Vents

• Fenders: Smooth Aluminum Radius Fenders

• Stoneguard: 16" Starbright

• Vents: Sidewall Flow-Thru Vents (Pair)
