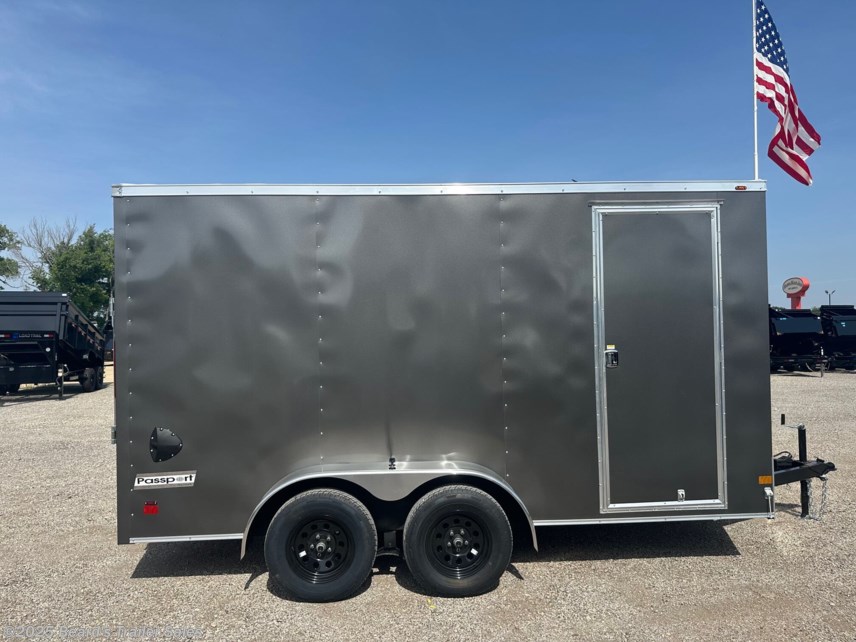

New 2025 Haulmark Passport 7X14

?? Construction & Frame

• Steel frame construction

• 2” x 4” tube main rails

• Tube roof bows (24” on center)

• Crossmembers 16” on center

• Vertical posts 16” on center

• Sub-82 ½” Z-posts

• Flat roof design

• V-front and V-nose configuration

• Standard A-frame tongue

• Black frame paint

?? Dimensions

• Length: 14 ft

• Width: 7 ft

• Interior Height: Approx. sub-7'0" (increased height)

• GVWR: 7,000 lbs

?? Doors & Access

• 5,000 lb rated rear ramp door with extension (up to 8’ height max)

• 32" x 78" side passenger door (RH hinge)

?? Axles, Wheels, & Coupling

• Tandem axle configuration

• (2) 3.5K spring electric brake axles (4” drop, EZ Lube)

• (4) ST205/75R15 radial tires on 5B black mod steel wheels

• 2-5/16” 14,000 lb coupler

• Safety chains: 8/0 x 27” G3 with slip hooks

• 2,000 lb top-wind tongue jack

• Sand pad

?? Lighting & Electrical

• (1) 12V dome light

• LED lighting package:

  • (1 pair) LED fender mount clearance lights

  • (2) LED red lens clearance lights

  • (2) LED amber lens clearance lights

  • (1 pair) LED slim line red lens tail lights

  • (1) LED rear clearance light ID bar

• License plate bracket with separate light

• Breakaway kit with charger

?? Interior

• ¾” PlexCore™ flooring

• ?” PlexCore™ sidewall liner

• (4) 5,000 lb square D-rings with welded plates

?? Exterior & Protection

• 1-piece aluminum roof

• CHARCOAL GREY .030 aluminum exterior

• Semi-screwless exterior with color-coated screws

• Smooth aluminum fenders

• 16” Starbright stoneguard

• Sidewall flow-thru vents
