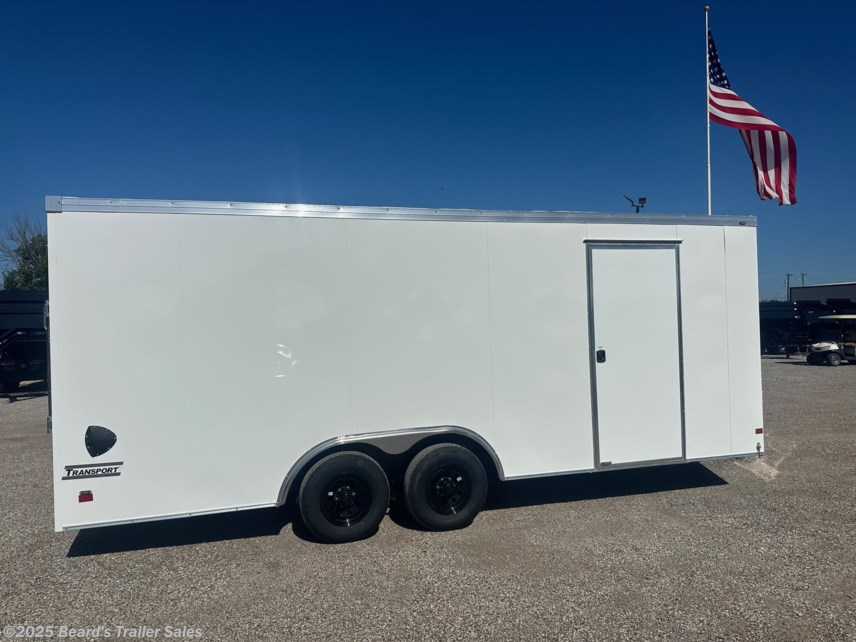

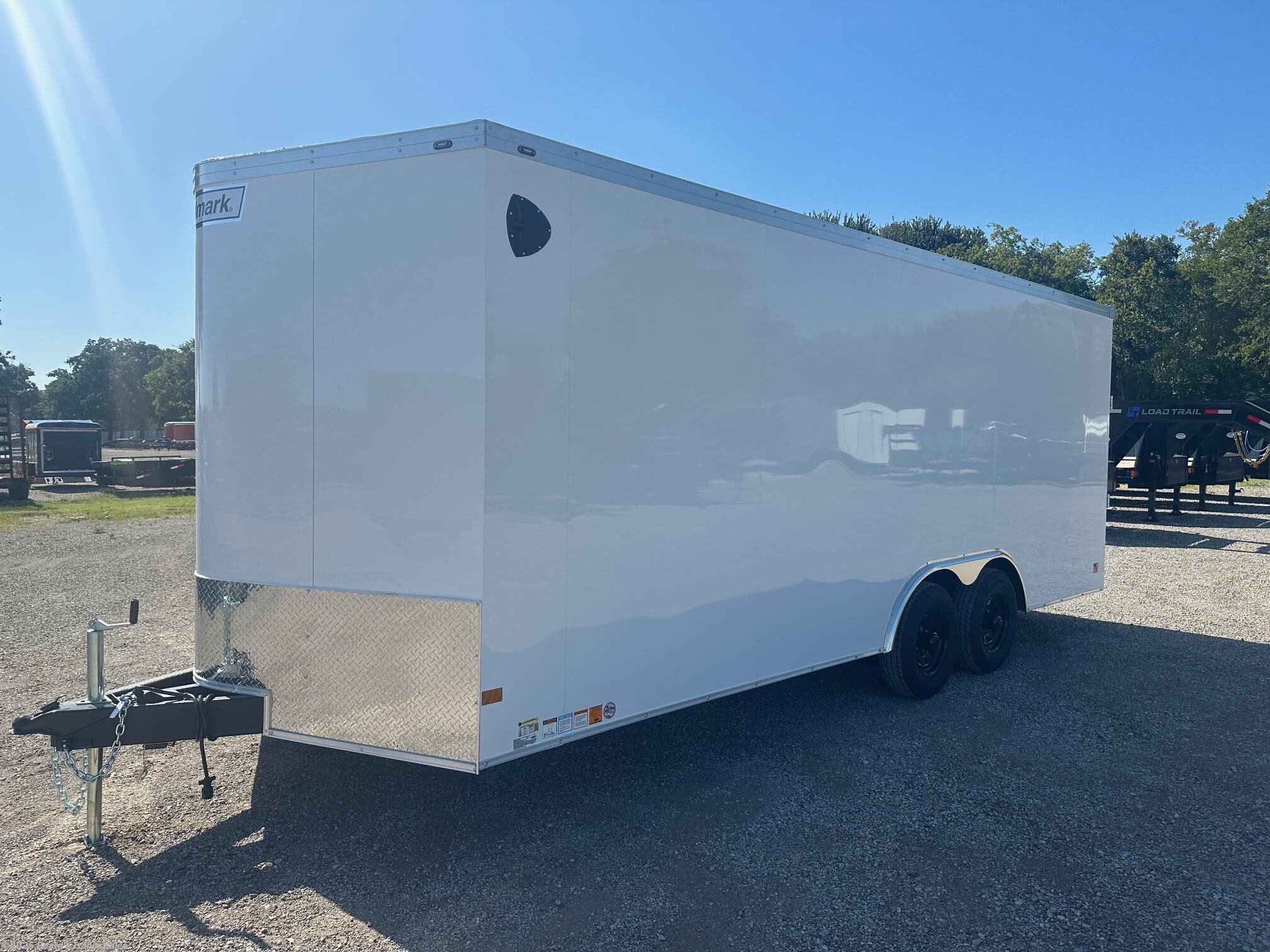

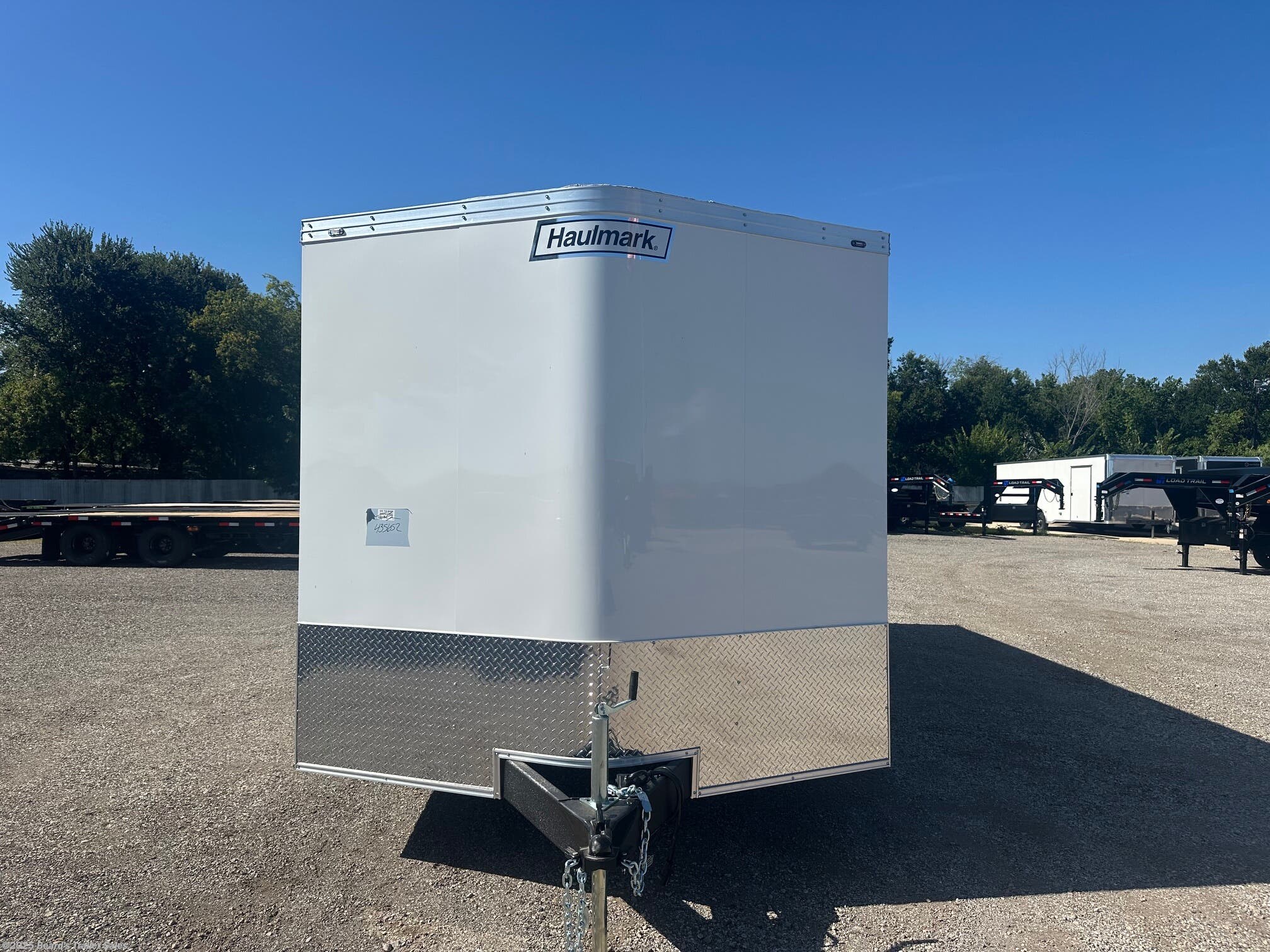

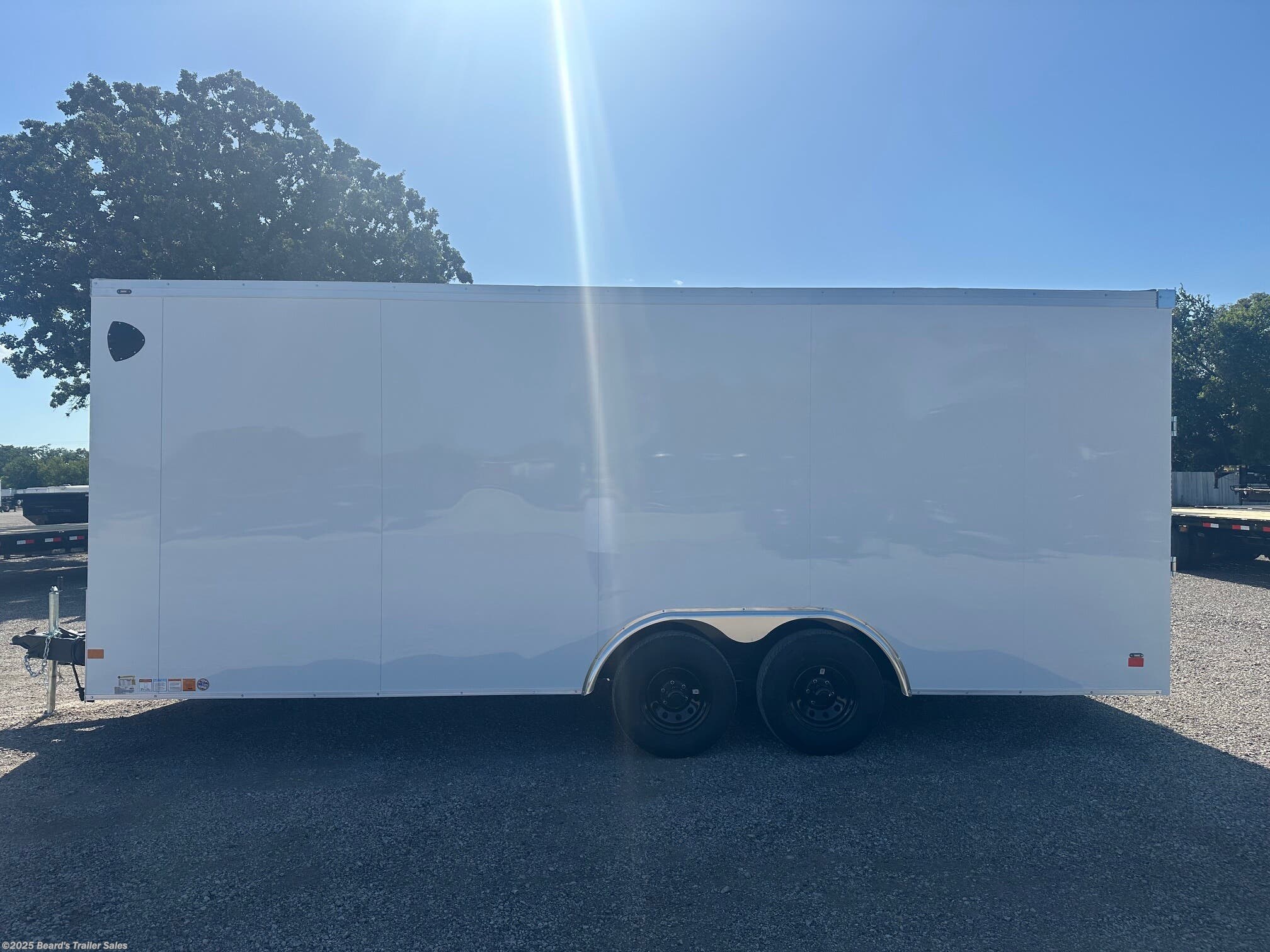

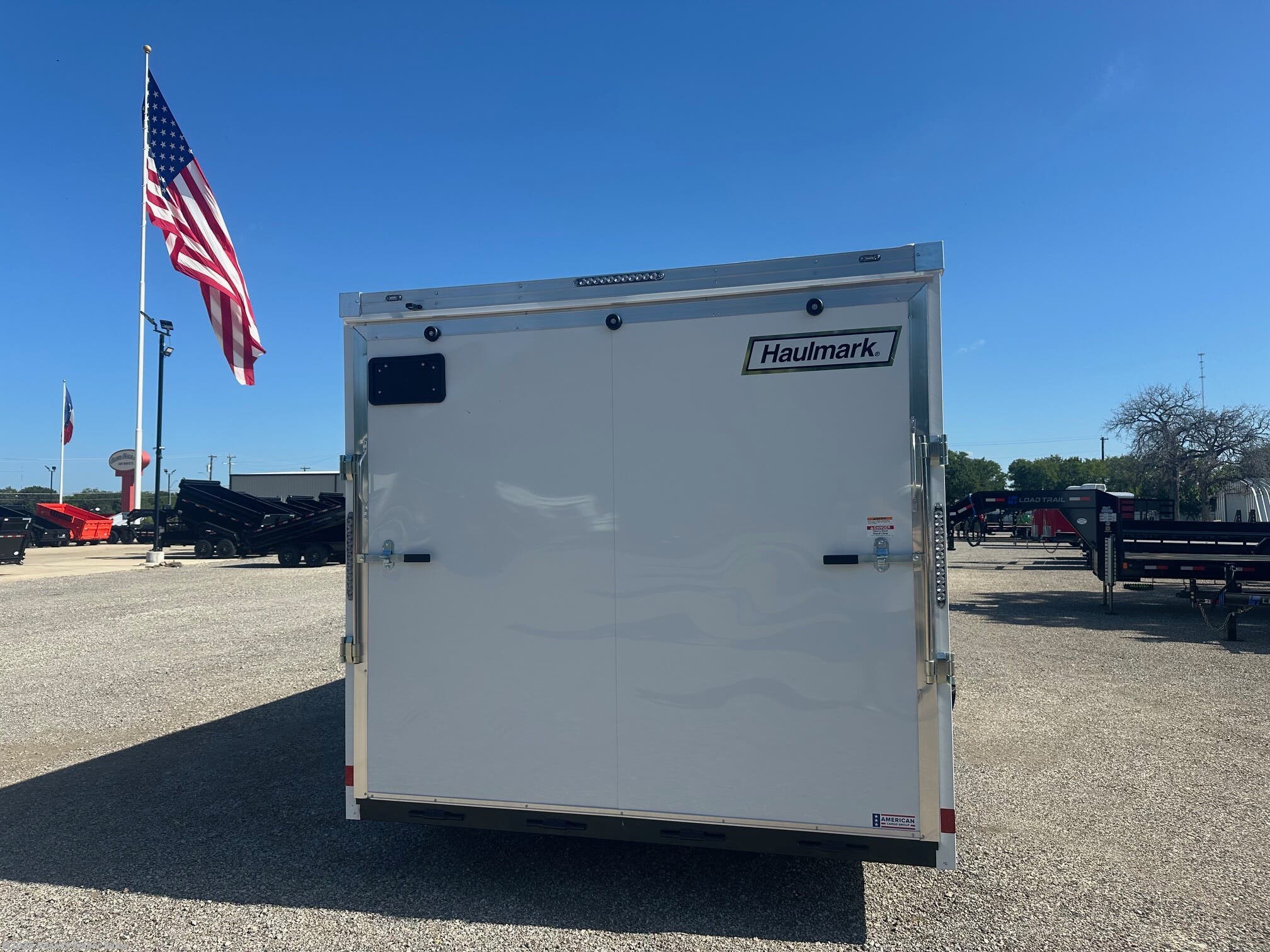

New 2025 Haulmark Transport 8.5 X 20

• Model: TSV8520T3 Utility

• GVWR: 9,990 lbs

• Interior Length: 20 ft

• Interior Width: 8.5 ft

• Interior Height: Sub-7’0” (Approx.) — $340 added cost

• Beavertail: 48" built-in for easy loading

• Rear Opening Width: 94"

• Rear Ramp Door: 5,000 lb, 8' height max, with ramp extension

??? Frame & Structure

• Steel Frame Construction

• 2x6 Tube Main Rails (20 ft)

• 16" On-Center Crossmembers (20 ft)

• 16" On-Center Tube Roof Bows (20 ft)

• 16" On-Center Vertical Wall Posts (20 ft) — Sub-80-3/4" Tube Posts

• One-Piece Aluminum Roof (20 ft)

• Bonded Exterior Sidewalls

• Dust-Resistant Frame Design

• ArmorTech Coating on A-Frame & Rear End Rail

• Standard A-Frame Tongue w/ Center Drawbar

• V-Front & V-Nose Design

• Flat Roof

?? Doors & Access

• 36" x 78" Side Door, RH Hinge with Recessed Step

• Rear Ramp Door (5,000 lb rated) with Ramp Extension

?? Axles & Running Gear

• Tandem Axle Setup

• (2) 5.2K Spring Electric Brake Axles, 4" Drop, 6-bolt, EZ Lube

• 4x ST225/75R15 Radial Tires on 6-bolt Black Mod Steel Wheels

• 4x Center Caps

• 2,000 lb Top Wind Tongue Jack

• 2-5/16" Coupler Rated 14,000 lb

• 5/16" x 27" G4 Safety Chains w/ Clevis Hooks

• Sand Pad

?? Lighting & Electrical

• 2x 12V LED Dome Lights (Requires 12V Wall Switch)

• 1x 12V Surface-Mount Switch

• LED Slim Line Clear Lens Tail Lights

• 4x LED Clear Lens Amber Clearance Lights

• 4x LED Clear Lens Red Clearance Lights

• LED Rear Clearance Light ID Bar

• License Plate Holder with Separate Light

• Breakaway Kit with Charger

?? Interior Features

• 3/4" PlexCore Floor Decking (20 ft)

• 3/8" PlexCore Sidewall Liner (20 ft)

• 4x 5,000 lb Welded Square D-Rings

• Sidewall Flow-Thru Vents

?? Exterior Features

• Polar White .030 Aluminum Exterior (20 ft)

• 24" ATP Stoneguard

• Smooth Aluminum Fenderettes
