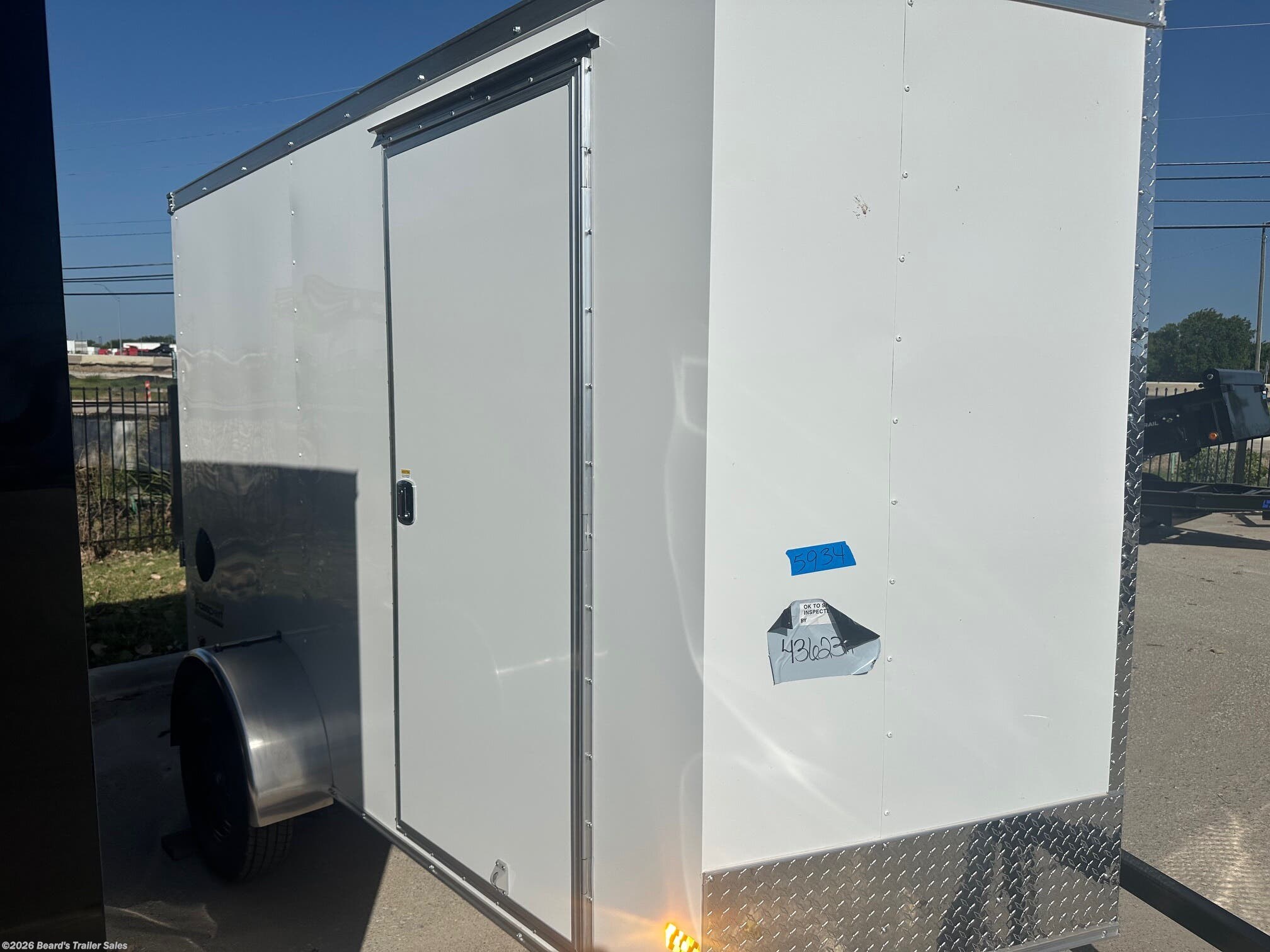

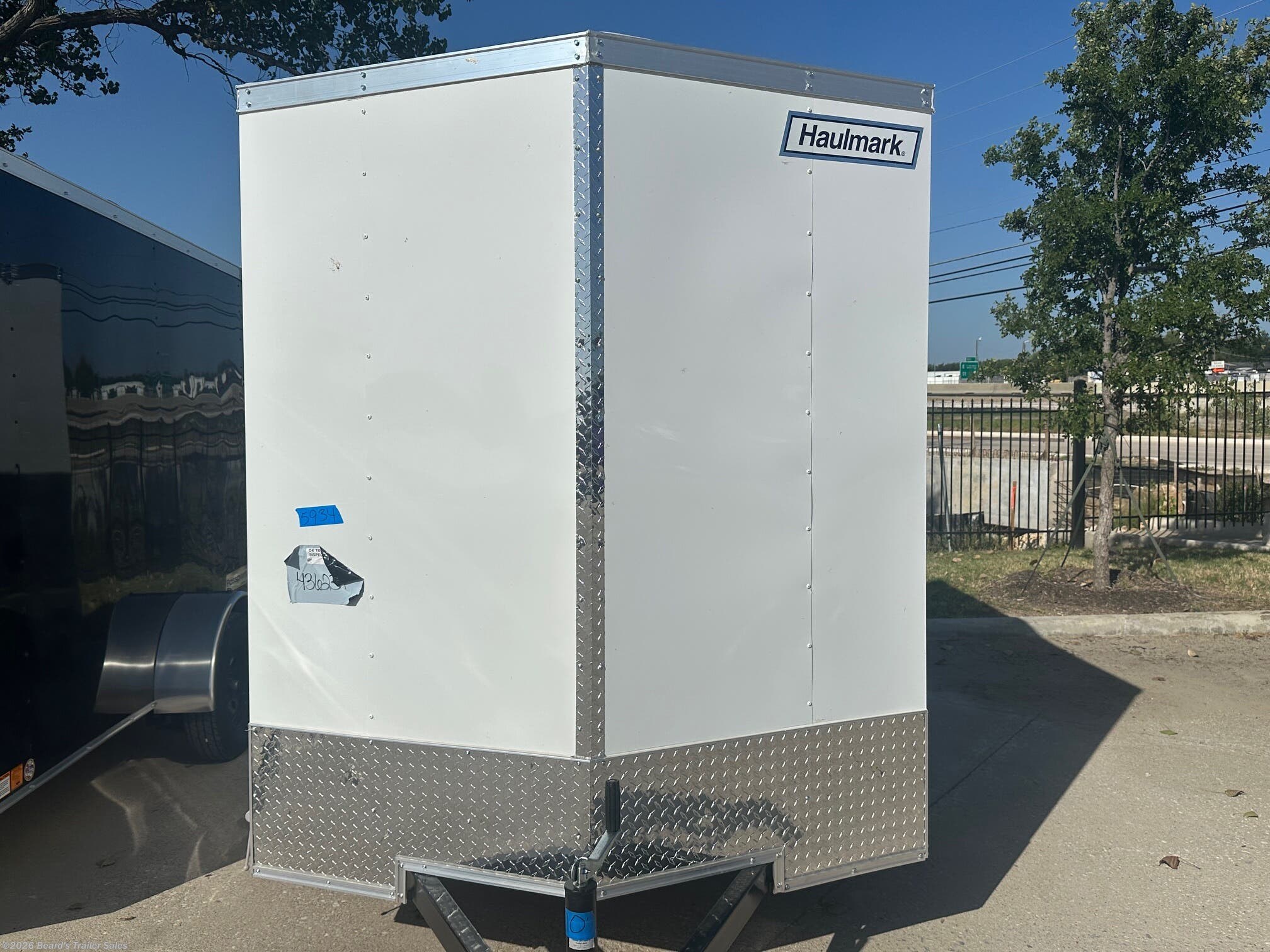

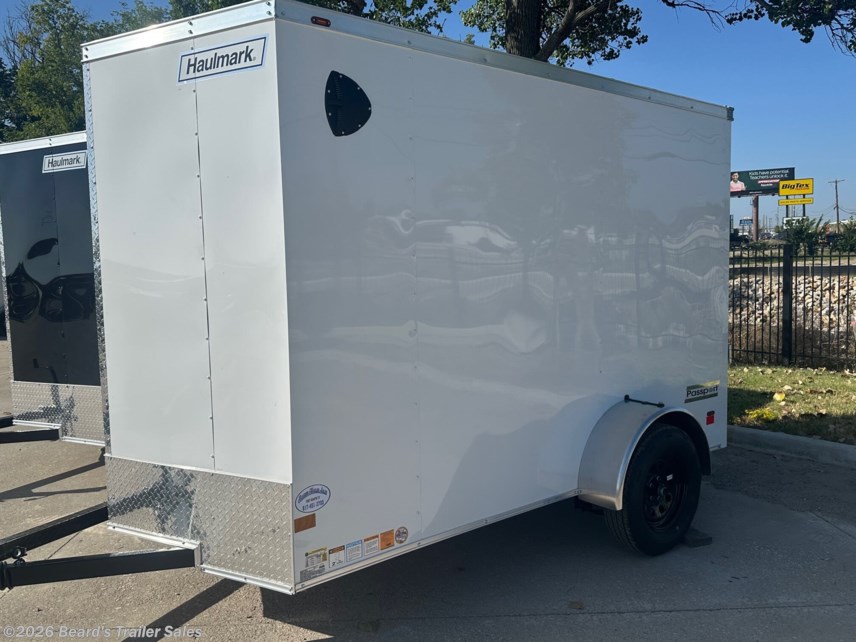

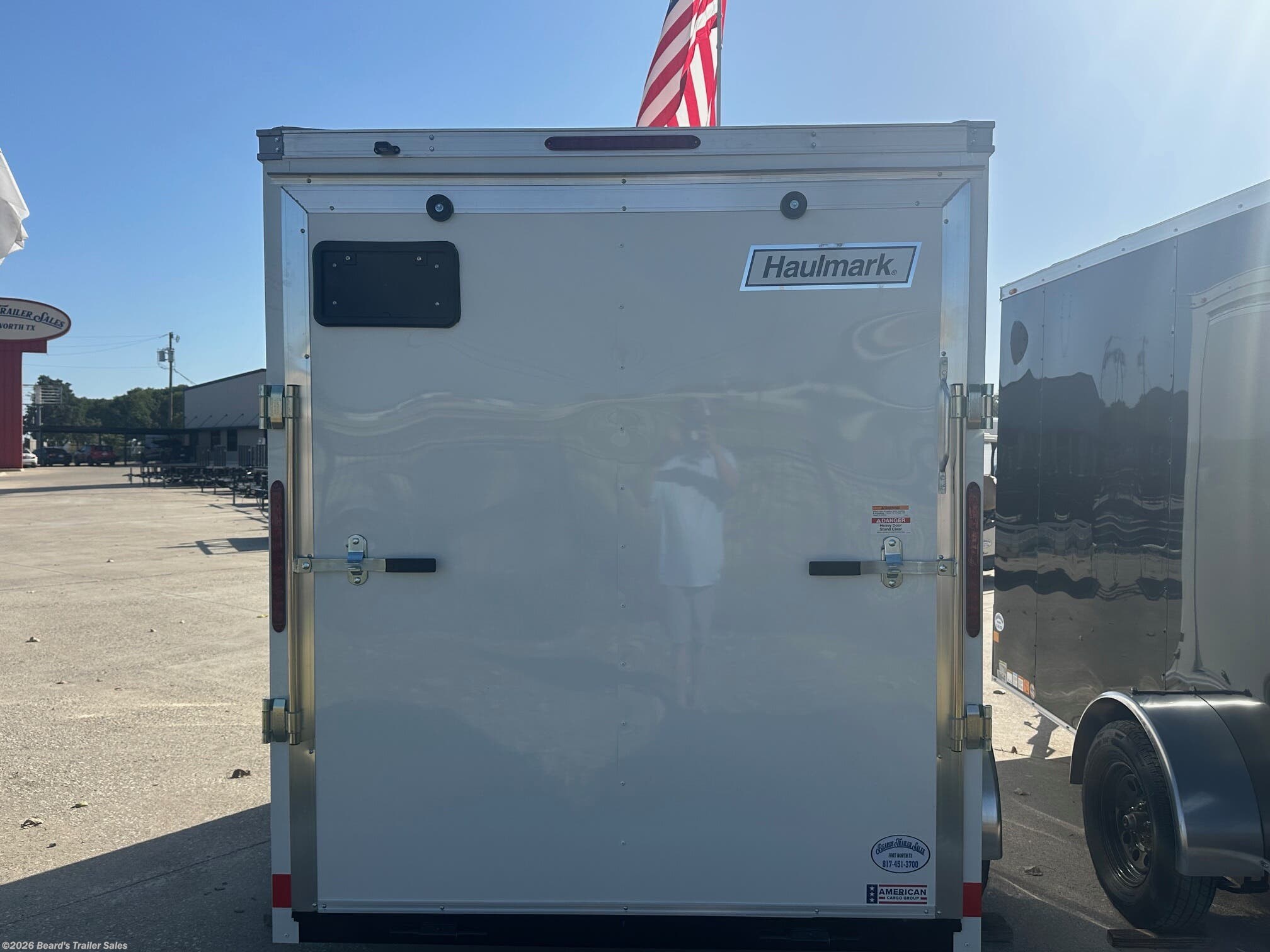

New 2026 Haulmark Passport 6X12

?? Structural & Frame

• Steel frame construction

• V-front design

• Flat roof configuration

• Standard A-frame tongue

• Black frame paint

• 2" x 3" tube main rails

• Tube roof bows (24” on center)

• Vertical tube posts (16” on center)

• Crossmembers (16” on center)

• 76.5" tube side posts

• Approximate inside height: 6’6”

?? Dimensions & Capacity

• Length: 12 ft

• Width: 6 ft

• GVWR: 2,990 lbs

?? Running Gear

• 3.5K spring axle (no brakes, 4" drop, EZ Lube hubs)

• Single axle configuration

• ST205/75R15 radial tires on 5-lug black mod steel wheels (Qty: 2)

?? Doors & Access

• 2000 lb rear ramp door with deluxe trim & 16" PlexCore ramp extension

• 32” x 72” side PT door (RH hinge)

?? Interior

• 3/4" PlexCore floor decking (full length)

• 3/8" PlexCore sidewall liner

• (4) 5,000 lb square D-rings with welded plates for cargo tie-down

?? Electrical & Lighting

• 12V dome light

• LED lighting package:

  • Fender mount clearance lights (Pair)

  • Red lens clearance lights (Qty: 2)

  • Amber lens clearance lights (Qty: 2)

  • Slim line red lens tail lights (Pair)

  • Rear clearance light ID bar with red lens

?? Tongue & Hitch

• 2" 5,000 lb coupler

• 2,000 lb top wind tongue jack with sand pad

• 1/4" x 27" Grade 3 safety chains with slip hooks

??? Exterior

• 1-piece aluminum roof

• Semi-screwless .030 aluminum exterior in WHITE

• Color-coated screws for cleaner appearance

• Smooth aluminum radius fenders (Pair)

• 16" Starbright stoneguard

• Sidewall flow-thru vents (Pair)

• License plate bracket with separate light
