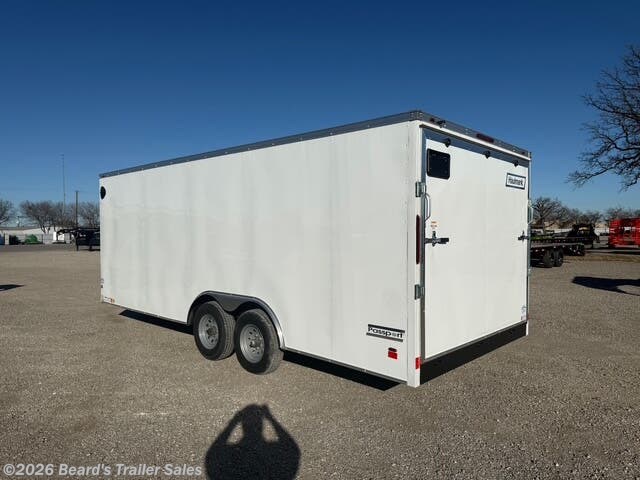

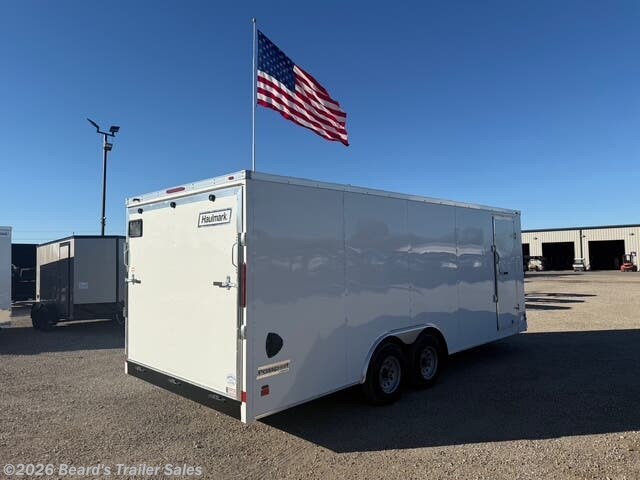

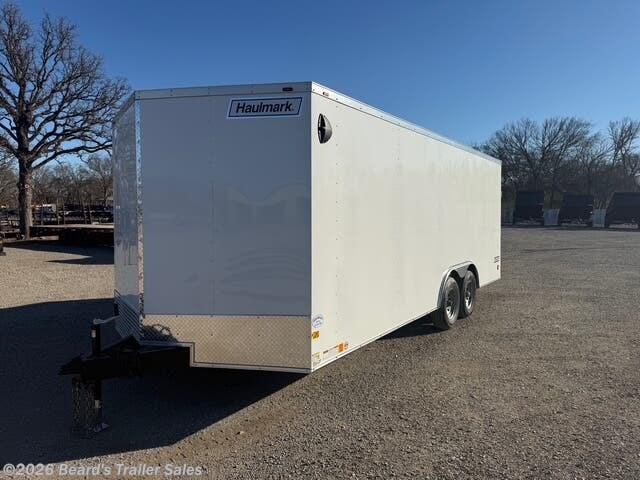

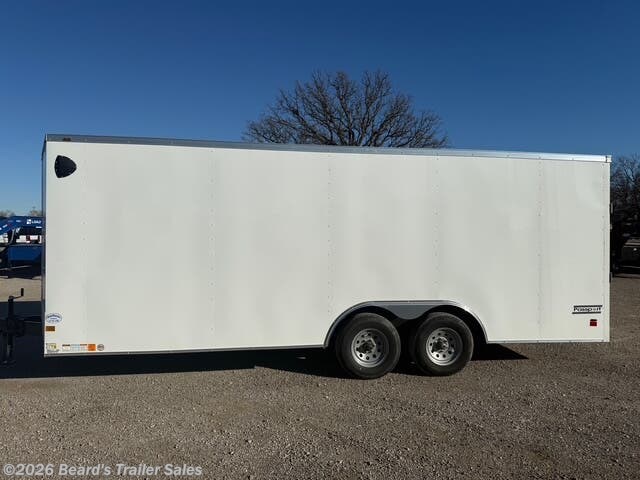

New 2026 Haulmark Passport 8.5X20

PASSPORT DLX-ACG ENCLOSED CARGO TRAILER

Model: PP8520T3-D
GVWR: 9,990 lbs
Length: 20 ft
Width: 8.5 ft
Approx. Interior Height: 6’6”
Axles: Tandem

Chassis & Frame

• Steel frame construction

• V-front / V-nose design

• Standard A-frame tongue

• 2" x 6" tube main rails

• Crossmembers 24" on center

• Tube roof bows 24" on center

• Vertical posts 16" on center

• Z-posts (76 1/2")

• Black frame paint

• Sand pad

• 2-5/16" 14,000 lb coupler

• Safety chains with clevis hooks

• 2,000 lb top-wind tongue jack

Axles, Wheels & Brakes

• Tandem axle configuration

• (2) 5.2K spring electric brake axles

• 4" drop axles with EZ Lube hubs

• ST225/75R15 radial tires

• Silver modular steel wheels

Exterior

• Polar White .030 aluminum exterior

• 1-piece aluminum roof

• 6" exterior aluminum screw pattern

• Smooth aluminum fenderettes

• 16" Starbright stoneguard

• Sidewall flow-thru vents

• Flat roof design

Doors & Access

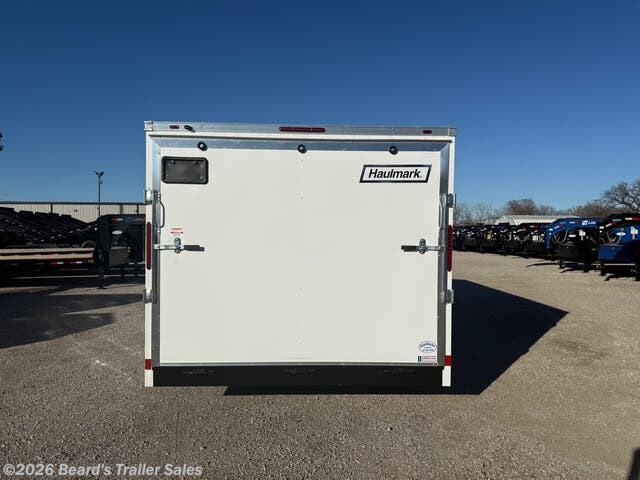

• Medium-duty rear ramp door with deluxe trim

• 16" PlexCore ramp extension

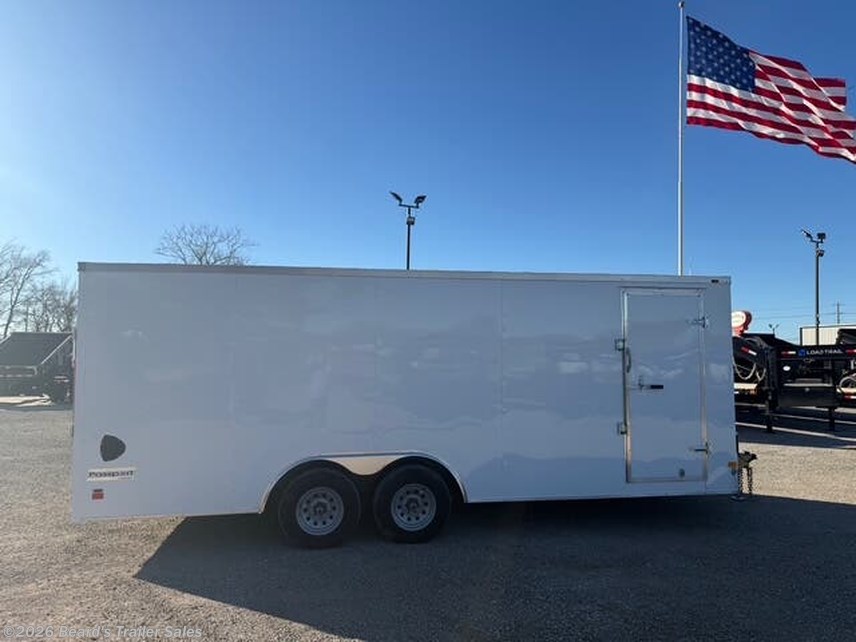

• 32" x 72" side door with grab handle & bar lock

Interior

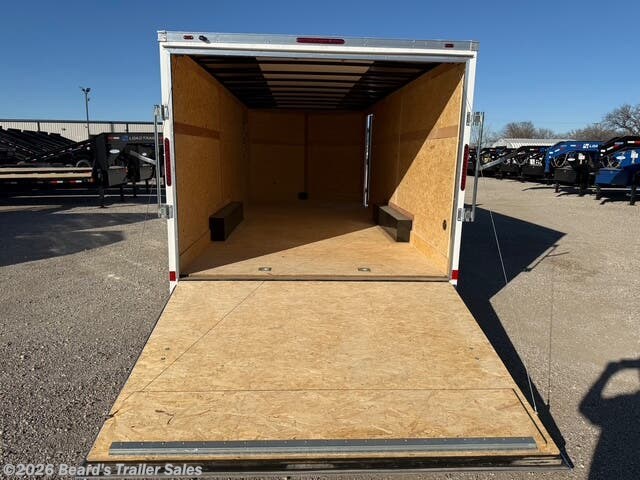

• 3/4" PlexCore decking

• 3/8" PlexCore sidewall liner

• (4) 5,000 lb square D-rings with welded plates

• Dome light (12V)

Electrical & Lighting

• Breakaway kit with battery charger

• LED slim-line tail lights

• LED rear clearance ID light bar

• LED red clearance lights

• LED amber clearance lights

• License plate bracket with separate light
