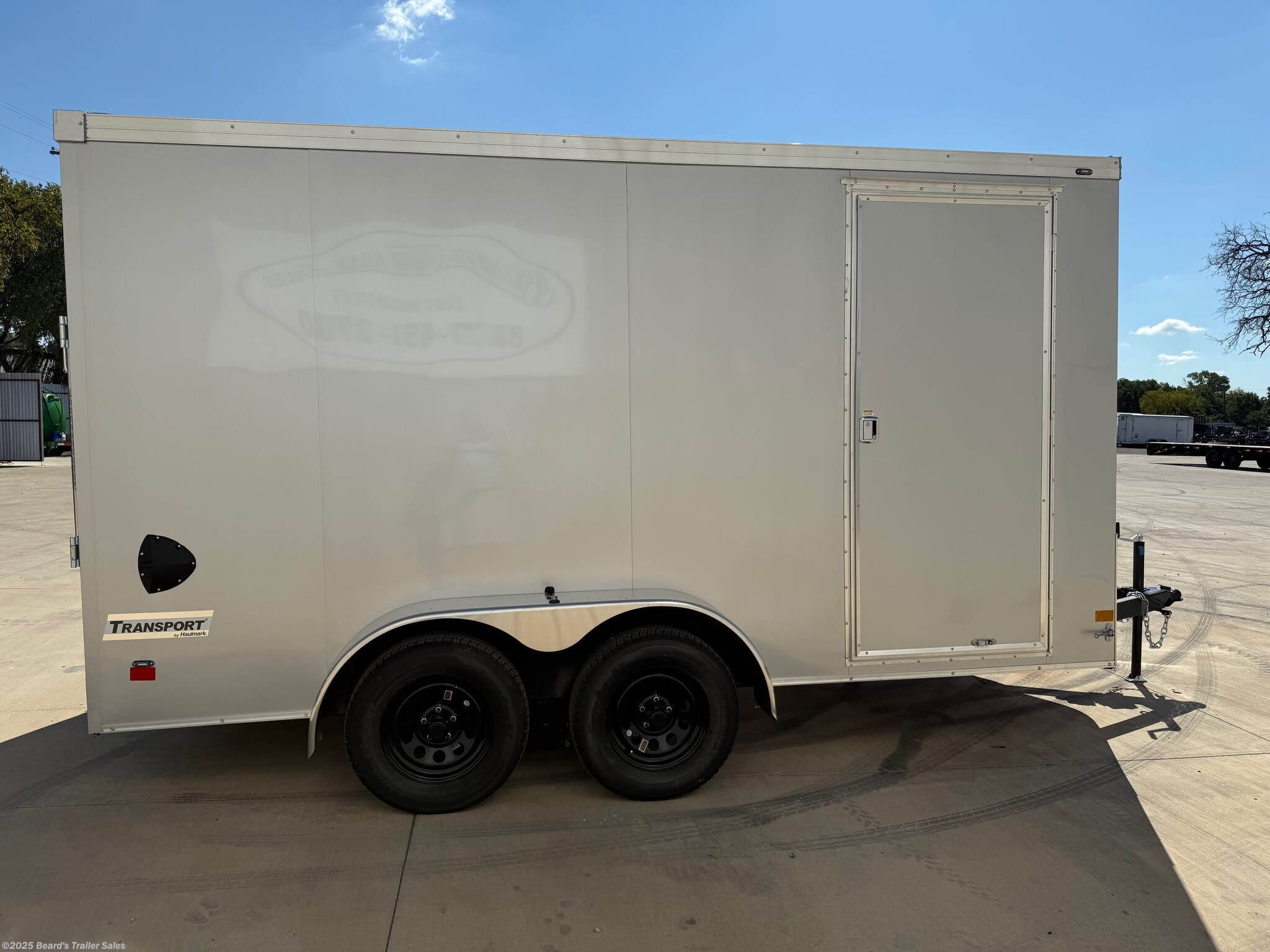

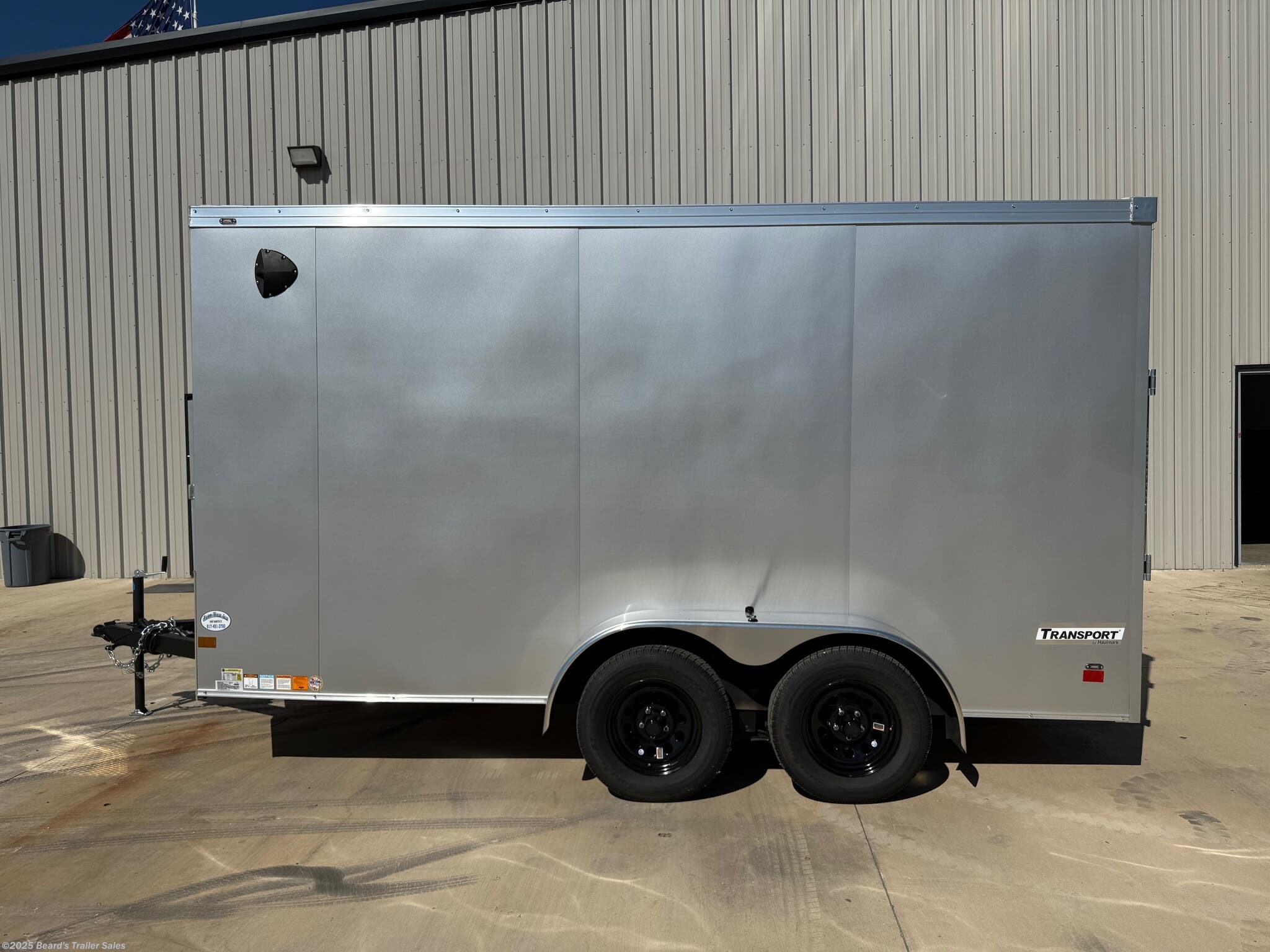

New 2026 Haulmark Transport V-Nose 7 X 14

Trailer Model: TSV714T2

GVWR: 7,000 lbs
Length: 14 ft
Width: 7 ft
Serial No: 7V0H1142XTT435830

Frame & Structure

• Steel frame construction

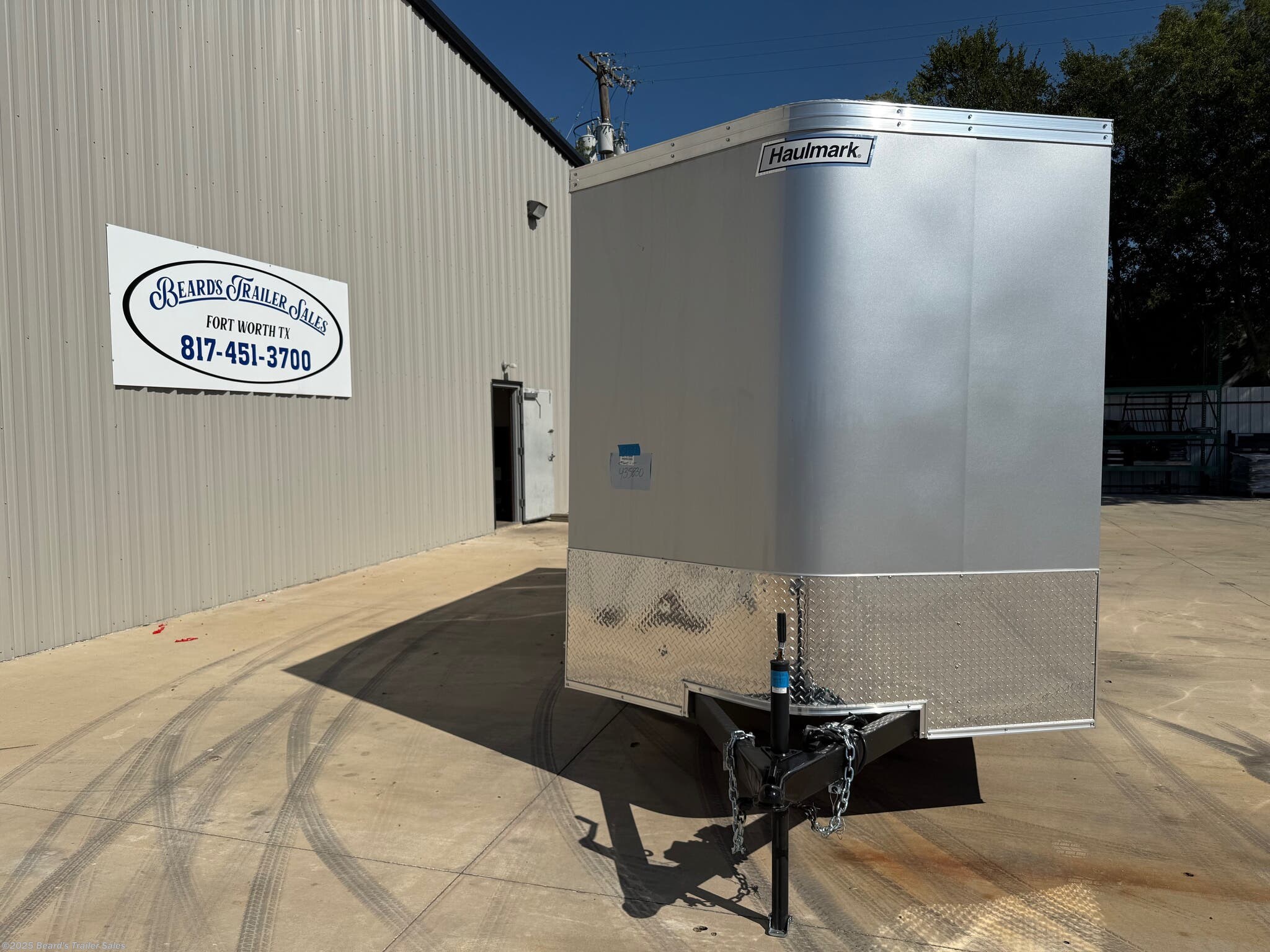

• V-front design

• Standard tag configuration

• 2" x 4" tube main rails

• Tube roof bows, 16" on center

• Vertical posts, 16" on center

• Crossmembers, 16" on center

• ArmorTech on A-frame and rear end rail

• Standard A-frame tongue

Exterior

• Silverfrost .030 bonded aluminum exterior sidewalls

• One-piece aluminum roof

• Smooth aluminum fenders

• 24" ATP stone guard

• Sidewall flow-thru vents

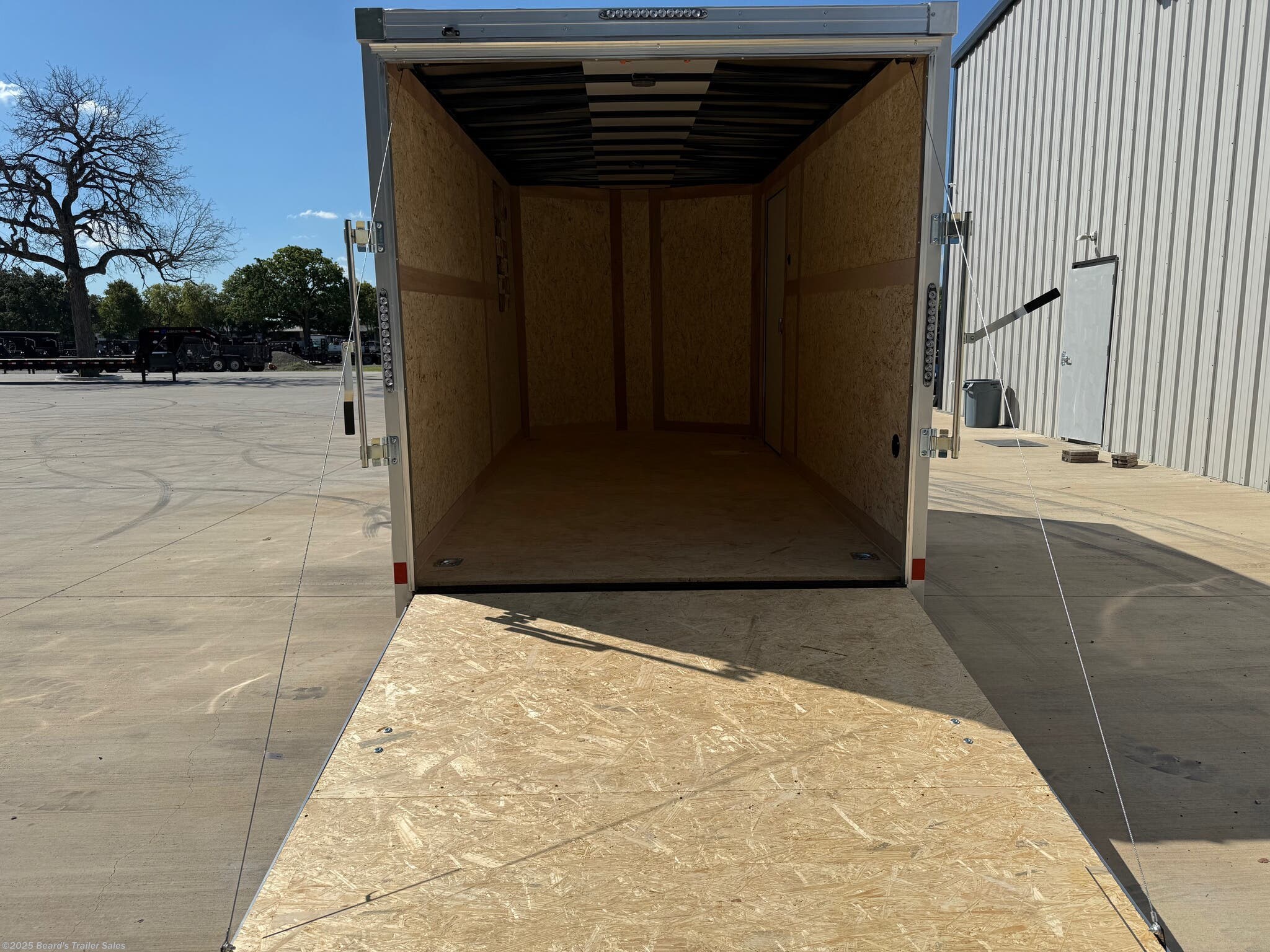

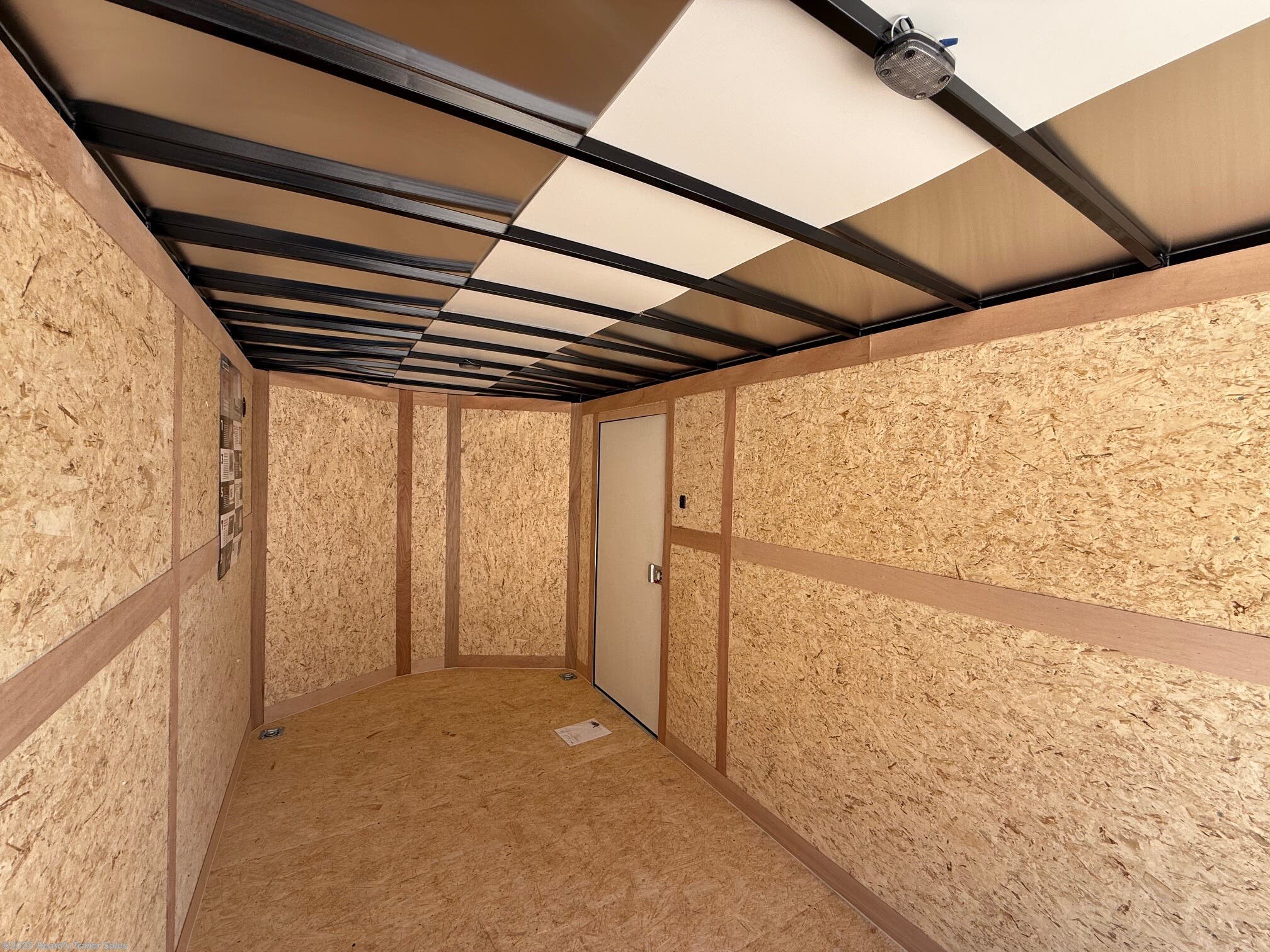

Interior

• Approx. 7 ft interior height

• 3/4" PlexCore flooring

• 3/8" PlexCore sidewall liner

• (4) 5,000 lb square D-rings (welded plate)

Doors

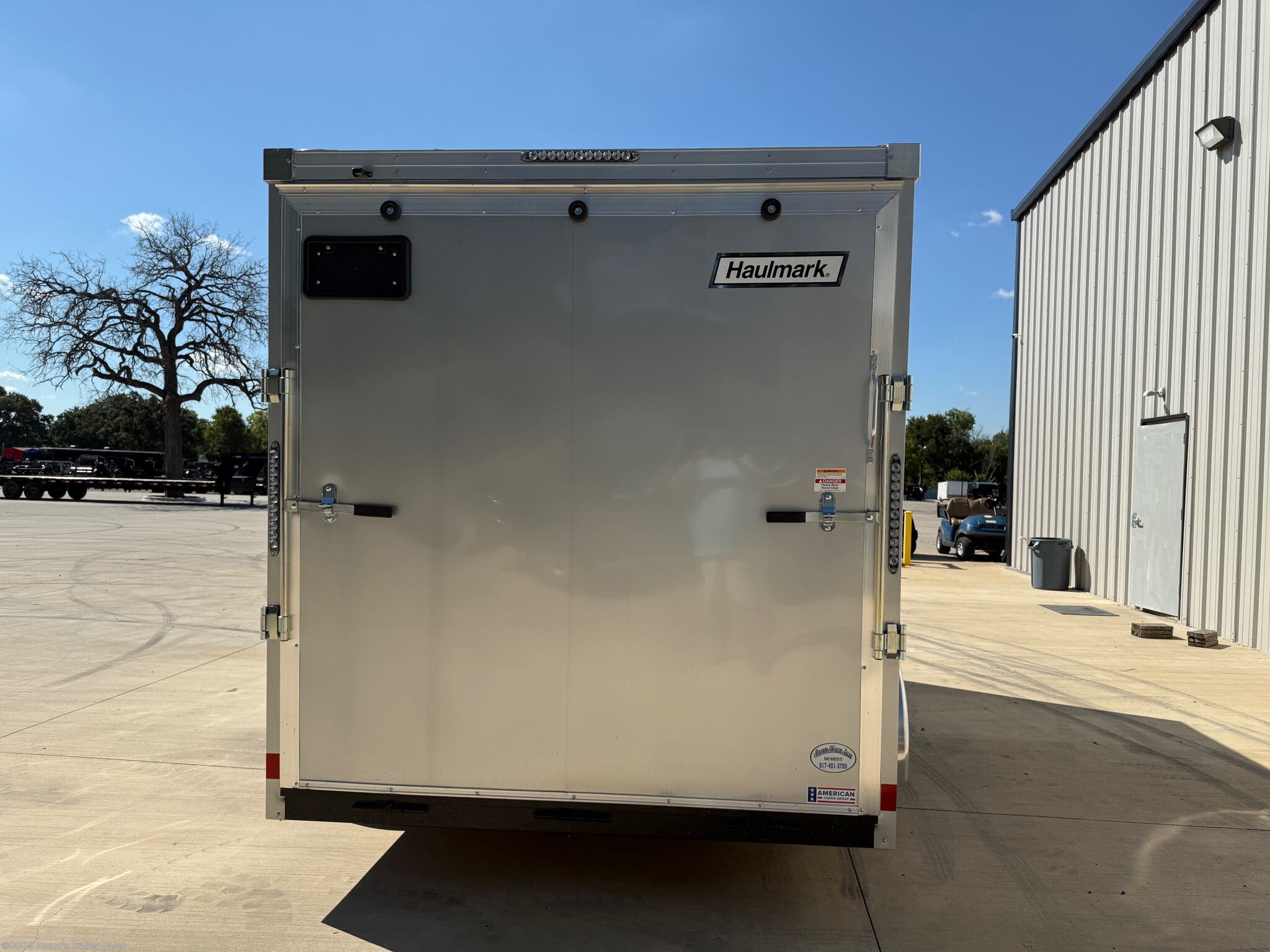

• 5,000 lb rear ramp door with ramp extension (max 8' height)

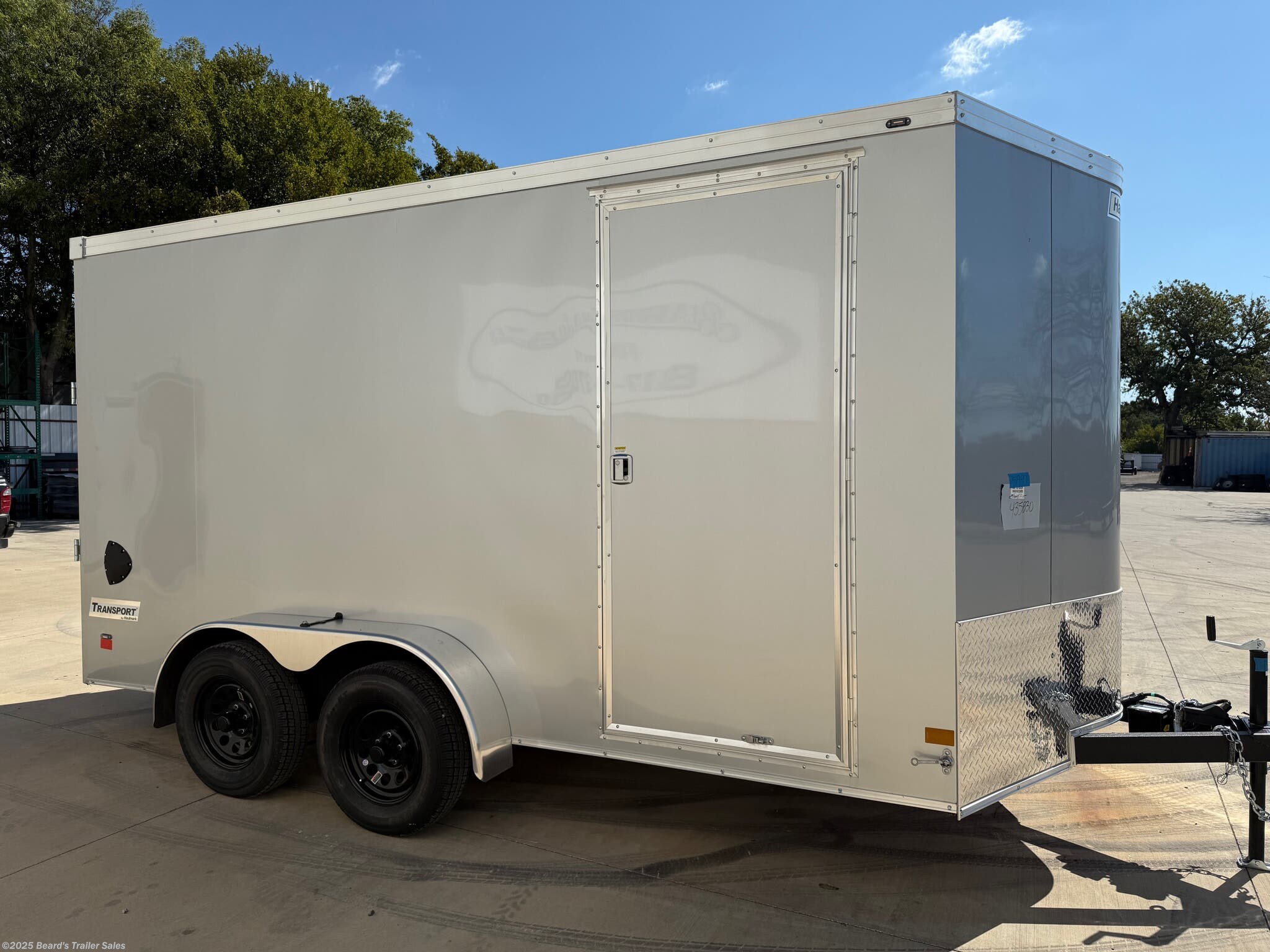

• 36"x78" side door, RH hinge

Axles & Running Gear

• Tandem 3,500 lb spring electric brake axles (4" drop, EZ Lube)

• (4) ST205/75R15 radial tires on black mod steel wheels

• Center caps on wheels

• 2-5/16" 14,000 lb coupler

• Sand pad & 2,000 lb top-wind tongue jack

• Breakaway kit with charger

Lighting & Electrical

• (2) 12V LED dome lights (wall switch required)

• License plate holder with separate light

• LED fender mount clearance lights

• LED slim line clear lens tail lights

• LED amber & red clearance lights

• LED rear clearance light ID bar

• 12V surface-mount switch
